ZSSC3135 Sensor Signal Conditioner

📥 Download Datasheet Datasheet Preview Page 1

Description

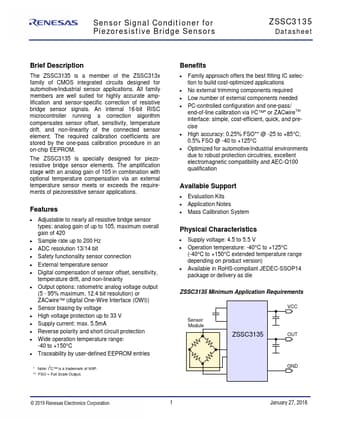

Sensor Signal Conditioner for Piezoresistive Bridge Sensors ZSSC3135 Datasheet Brief .
The ZSSC3135 is a member of the ZSSC313x family of CMOS integrated circuits designed for automotive/industrial sensor applications.

📥 Download Datasheet

Preview of ZSSC3135 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ZSSC3135
Manufacturer
Renesas ↗
File Size
420.56 KB
Datasheet
ZSSC3135-Renesas.pdf
Description
Sensor Signal Conditioner

Features

* Adjustable to nearly all resistive bridge sensor types: analog gain of up to 105, maximum overall gain of 420
* Sample rate up to 200 Hz
* ADC resolution 13/14 bit
* Safety functionality sensor connection
* External temperature sensor
* Digital compe

Applications

* All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller running a correction algorithm compensates sensor offset, sensitivity, temperature drift, and non-linearity of the connecte
