RT3606BC Dual Channel PWM Controller

RT3606BC Description

® RT3606BC Dual Channel PWM Controller with Integrated Driver for IMVP8 CPU Core Power Supply General .
Features The RT3606BC is an IMVP8 compliant CPU power controller which includes two voltage rails : a 3/2/1 phase synchronous Buck controller, the C.

RT3606BC Features

* The RT3606BC is an IMVP8 compliant CPU power controller which includes two voltage rails : a 3/2/1 phase synchronous Buck controller, the CORE VR and a 2/1 phase synchronous Buck controller, the AXG VR. The RT3606BC adopts G-NAVPTM (Green Native AVP) which is Richtek's proprietary topology derived

RT3606BC Applications

* IMVP8 Intel Core Supply
* Notebook/ Desktop Computer/ Servers Multi-phase CPU Core Supply
* AVP Step-Down Converter Simplified Application Circuit To PCH To CPU RT3606BC PGOOD PHASE1 VR_HOT PHASE2 VCLK PWM3 VDIO PHASEA1 ALERT PWMA2 Driver Driver MOSFET MOSFET MOSFET MOSFET MO

📥 Download Datasheet

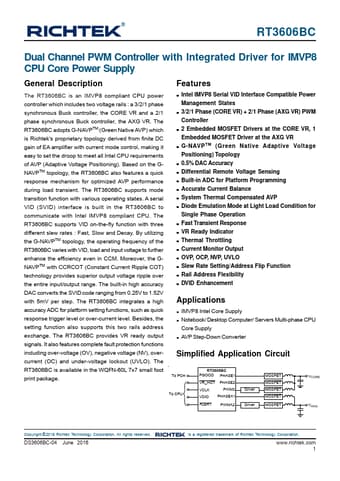

Preview of RT3606BC PDF
