RT3606BE Dual Channel PWM Controller

RT3606BE Description

® RT3606BE Dual Channel PWM Controller for IMVP8 CPU Core Power Supply General .
The RT3606BE is an IMVP8 compliant CPU power controller which includes two voltage rails : a 3/2/1 phase synchronous Buck controller, the CORE VR and.

RT3606BE Features

* a quick response mechanism for optimized AVP performance during load transient. The RT3606BE supports mode transition function with various operating states. A serial VID (SVID) interface is built in the RT3606BE to communicate with Intel IMVP8 compliant CPU. The RT3606BE supports VID on-the-fly fun

RT3606BE Applications

* IMVP8 Intel Core Supply
* Notebook/ Desktop Computer Multi-phase CPU Core Supply
* AVP Step-Down Converter Simplified Application Circuit To PCH To CPU RT3606BE PGOOD PWM1 VR_HOT PWM2 VCLK VDIO PWM3 PWMA2 ALERT PWMA1 Driver Driver Driver Driver Driver MOSFET MOSFET MOSFET MO

📥 Download Datasheet

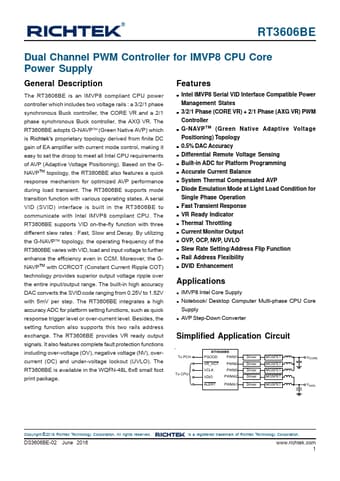

Preview of RT3606BE PDF
