RT9201 - High Efficiency PWM Step-Down DC-DC Converter

RT9201 Description

Preliminary RT9201 High Efficiency PWM Step-Down DC-DC Converter General .
The RT9201 is a high-efficiency pulse-width-modulated (PWM) step-down DC-DC converter.

RT9201 Features

* include soft start, 0.8V internal reference voltage with 1% accuracy, over temperature protection, and over current protection. DFN-10L 3x3 EN SS FB NC GND 1 2 3 4 5 Features l l l l l l l l l +2.5V to +5.5V Input Range Adjustable Output From 0.85V to VIN 600mA Output Current 95% Efficiency No Sch

RT9201 Applications

* l l l l l l Cellular Telephones Wireless Modems Personal Information Appliances Portable Instruments Distributed Power Systems Battery-Powered Equipment (1 Li-Ion or 3 NiMH/NiCd) Pin Configurations (TOP VIEW) 10 9 GND Ordering Information RT9201 Marking Information For marking information, cont

📥 Download Datasheet

Preview of RT9201 PDF

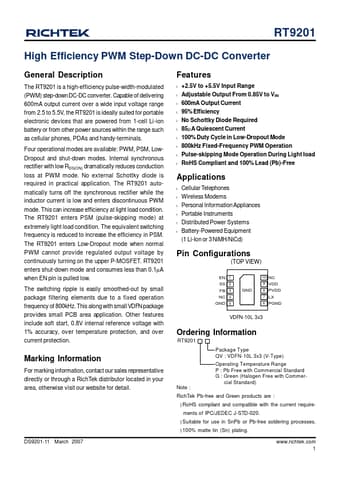

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT9201
Manufacturer
Richtek Technology
File Size
189.19 KB
Datasheet
RT9201_RichtekTechnology.pdf
Description
High Efficiency PWM Step-Down DC-DC Converter
