RT9598

MOSFET Integrated Smart Photoflash Capacitor Charger

Richtek Technology

RT9598 Features

* 55V MOSFET Integrated

* Charge any Size Photoflash Capacitor

* Adjustable Input Current

* Adjustable Output Voltage

* Charge Complete Indicator

* Built-In IGBT D

RT9598 General Description

The RT9598 is a complete photoflash module solution for digital and film cameras. It is targeted for applications that use 2 to 4 AA batteries or 1 to 2 Lithium-Ion batteries. The RT9598 adopts Flyback topology which uses constant primary peak current and zero secondary valley current to charge phot.

RT9598 Datasheet (130.58 KB)

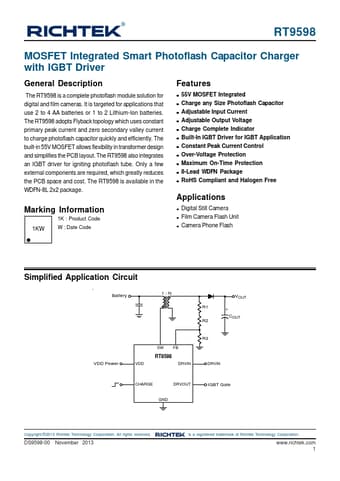

RT9598 Datasheet Preview — Preview of RT9598 PDF

Datasheet Details

Part number:

RT9598

Manufacturer:

Richtek Technology

File Size:

130.58 KB

Description:

Mosfet integrated smart photoflash capacitor charger.
