RT5715

High Efficiency Synchronous Step-Down Converter

Richtek

RT5715 Features

* 2A Converter Integrated 100mΩ and 80mΩ FETs in WDFN-8SL 2x2 Package

* Input Supply Voltage Range : 2.5V to 5.5V

* Output Voltage Range : 0.45V to VIN

* Advanced Constant On-Time (ACOTTM) Control  Ultrafast Transient Response  No Needs for External Compensations  Optimized for

RT5715 General Description

The RT5715 is a 2A, high-efficiency, Advanced ConstantOn-Time (ACOT) synchronous step-down converter. The device operates with input voltages from 2.5V to 5.5V. The device can program the output voltage between 0.45V to VIN. The low quiescent current design with the integrated low RDS(ON) power MOSF.

RT5715 Datasheet (279.72 KB)

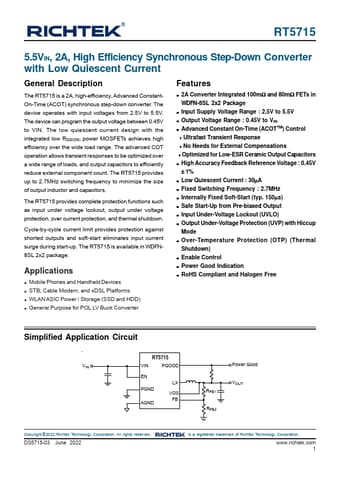

RT5715 Datasheet Preview — Preview of RT5715 PDF

Datasheet Details

Part number:

RT5715

Manufacturer:

Richtek

File Size:

279.72 KB

Description:

High efficiency synchronous step-down converter.
