RT5715A

High Efficiency Synchronous Step-Down Converter

RT5715A Features

* 2A Converter Integrated 100mΩ and 80mΩ FETs in WDFN-8SL 2x2 Package

* Input Supply Voltage Range : 2.5V to 5.5V

* Output Voltage Range : 0.45V to VIN

* Advanced Constant On-Time (ACOT®) Control  Ultrafast Transient Response  No Needs for External Compensations  Optimized for

RT5715A General Description

The RT5715A is a 2A, high-efficiency, Advanced ConstantOn-Time (ACOT®) synchronous step-down converter. The device operates with input voltages from 2.5V to 5.5V. The device can program the output voltage between 0.45V to VIN. The low quiescent current design with the integrated low RDS(ON) power MO.

RT5715A Datasheet (393.77 KB)

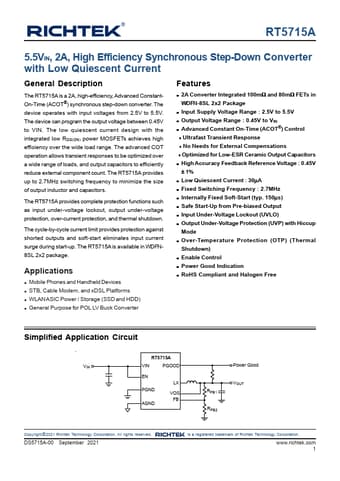

Preview of RT5715A PDF
