RT5762

6V Synchronous Step-Down Converter

RT5762 Features

* cycle-by-cycle current limit protection which prevents the device from the catastrophic damage in output short circuit, over current or inductor saturation. A built-in soft-start function prevents inrush current during start-up. The device also includes input under-voltage lockout, output under-volt

RT5762 General Description

The RT5762 is a simple, easy-to-use, 2A synchronous step-down DC-DC converter with an input supply voltage range from 2.5V to 6V. The device builds in an accurate 0.6V reference voltage and integrates low RDS(ON) power MOSFETs to achieve high efficiency in SOT-563 (FC) and UDFN-6L 1.4x1 (FC) package.

RT5762 Datasheet (0.97 MB)

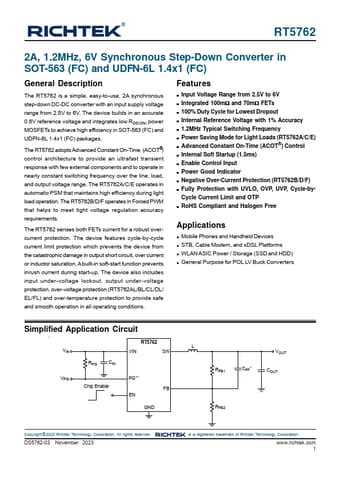

Preview of RT5762 PDF

Datasheet Details

Part number:

RT5762

Manufacturer:

Richtek

File Size:

0.97 MB

Description:

6v synchronous step-down converter.
