RT8206A Datasheet - Richtek

Main Power Supply Controller

RT8206A Features

* a linear regulator providing a fixed 5V output. The linear regulator provides up to 70mA output current with automatic linear regulator bootstrapping to the BYP input. The RT8206A/B includes on-board power up sequencing, the power good outputs, internal soft-start, and internal soft-discharge output

RT8206A General Description

The RT8206A/B dual step-down, Switch Mode Power Supply (SMPS) controller generates logic supply voltages in battery powered systems. The RT8206A/B includes two Pulse Width Modulation (PWM) controllers fixed at 5V/3.3V or adjustable from 2V to 5.5V. An optional external charge pump can be monitored t.

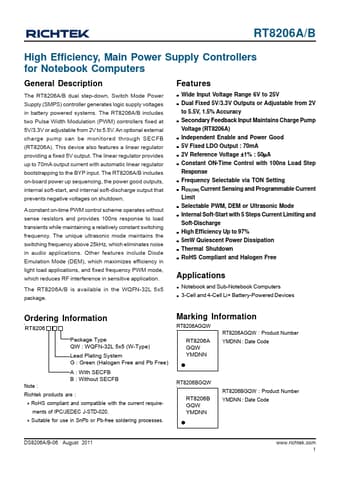

RT8206A Datasheet (433.72 KB)

RT8206A Datasheet Preview — Preview of RT8206A PDF

Datasheet Details

Part number:

RT8206A

Manufacturer:

Richtek

File Size:

433.72 KB

Description:

Main power supply controller.
