RT8206M, RT8206L Main Power Supply Controller

RT8206M Description

® RT8206L/M High Efficiency, Main Power Supply Controller for Notebook Computers General .
The RT8206L/M dual step-down, Switch-Mode PowerSupply (SMPS) controller generates logic-supply voltages in battery-powered systems.

RT8206M Features

* a linear regulator providing a fixed 5V output. The linear regulator provides up to 70mA output current with automatic linear regulator bootstrapping to the BYP input. The RT8206L/M includes on-board power-up sequencing, the power good outputs, internal soft-start, and internal soft-discharge output

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RT8206M, RT8206L. Please refer to the document for exact specifications by model.

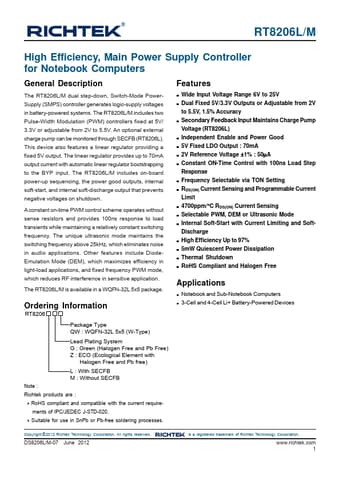

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8206M, RT8206L
Manufacturer
Richtek
File Size
539.11 KB
Datasheet
RT8206L_Richtek.pdf
Description
Main Power Supply Controller
Note
This datasheet PDF includes multiple part numbers: RT8206M, RT8206L.
Please refer to the document for exact specifications by model.
