RT8223B, RT8223A - Main Power Supply Controller

Richtek

Datasheet Details

Part number	RT8223B, RT8223A
Manufacturer	Richtek ↗
File Size	449.63 KB
Description	Main Power Supply Controller
Datasheet	RT8223A_Richtek.pdf
Note	This datasheet PDF includes multiple part numbers: RT8223B, RT8223A. Please refer to the document for exact specifications by model.

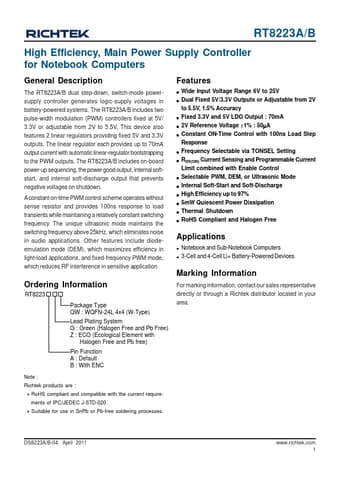

The RT8223A/B dual step-down, switch-mode powersupply controller generates logic-supply voltages in battery-powered systems.

2 linear regulators providing fixed 5V and 3.3V outputs. The linear regulator each provides up to 70mA output current with automatic linear-regulator bootstrapping to the PWM outputs. The RT8223A/B includes on-board power-up sequencing, the power good output, internal softstart, and internal soft-discharge output that prevents negative voltages on shutdown. A constant on-time PWM control scheme operates without sense resistor and provides 100ns response to load transients while maintaining a rel.
