RT8223M, RT8223L - Main Power Supply Controller

Richtek

Datasheet Details

Part number	RT8223M, RT8223L
Manufacturer	Richtek ↗
File Size	430.41 KB
Description	Main Power Supply Controller
Datasheet	RT8223L_Richtek.pdf
Note	This datasheet PDF includes multiple part numbers: RT8223M, RT8223L. Please refer to the document for exact specifications by model.

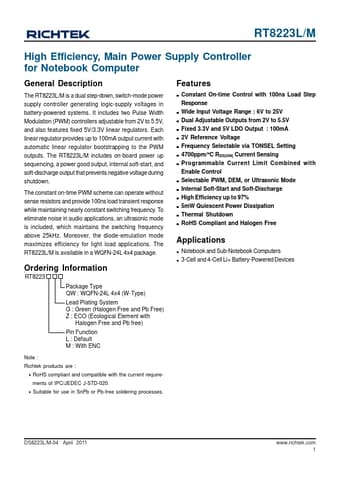

The RT8223L/M is a dual step-down, switch-mode power supply controller generating logic-supply voltages in battery-powered systems.

fixed 5V/3.3V linear regulators. Each linear regulator provides up to 100mA output current with automatic linear regulator bootstrapping to the PWM outputs. The RT8223L/M includes on-board power up sequencing, a power good output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown. The constant on-time PWM scheme can operate without sense resistors and provide 100ns load transient response while maintaining nearly constant switching frequency. To elimin.
