RT8287, 500kHz Synchronous Step-Down Converter

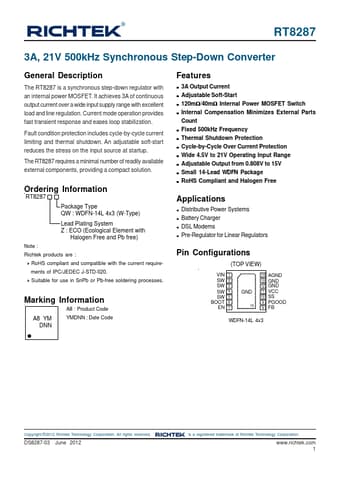

® RT8287 3A, 21V 500kHz Synchronous Step-Down Converter General .
The RT8287 is a synchronous step-down regulator with an internal power MOSFET.

RT8287_Richtek.pdf

RT8287 Datasheet Preview — Preview of RT8287 PDF

Datasheet Details

Part number:

RT8287

Manufacturer:

Richtek

File Size:

361.56 KB

Description:

500kHz Synchronous Step-Down Converter

Features

* z z z z 3A Output Current Adjustable Soft-Start 120mΩ/40mΩ Internal Power MOSFET Switch Internal Compensation Minimizes External Parts Count Fixed 500kHz Frequency Thermal Shutdown Protection Cycle-by-Cycle Over Current Protection Wide 4.5V to 21V Operating Input Range Adjustable Output from 0.808V

Applications

* z z z z Distributive Power Systems Battery Charger DSL Modems Pre-Regulator for Linear Regulators http://www. DataSheet4U. net/ Pin Configurations (TOP VIEW) VIN SW SW SW SW BOOT EN 1 2 3 4 5 6 7 14 13 RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020. Suitable for
