RT8287A 500kHz Synchronous Step-Down Converter

RT8287A Description

® RT8287A 4A, 21V 500kHz Synchronous Step-Down Converter General .
The RT8287A is a synchronous step-down regulator with an internal power MOSFET.

RT8287A Features

* z z z z 4A Output Current Adjustable Soft-Start 120mΩ/40mΩ Internal Power MOSFET Switch Internal Compensation Minimizes External Parts Count Fixed 500kHz Frequency Thermal Shutdown Protection Cycle-by-Cycle Over Current Protection Wide 4.5V to 21V Operating Input Range Adjustable Output from 0.808V

RT8287A Applications

* z z z z Distributive Power Systems Battery Charger DSL Modems Pre-Regulator for Linear Regulators http://www. DataSheet4U. net/ Pin Configurations (TOP VIEW) VIN SW SW SW SW BOOT EN 1 2 3 4 5 6 7 14 13 RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020. Suitable for

📥 Download Datasheet

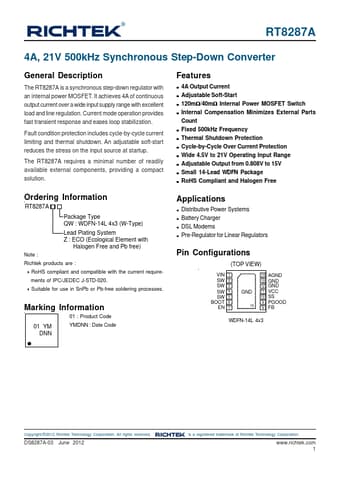

Preview of RT8287A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8287A
Manufacturer
Richtek
File Size
361.38 KB
Datasheet
RT8287A_Richtek.pdf
Description
500kHz Synchronous Step-Down Converter
