RT9624B Single Phase Synchronous Rectified Buck MOSFET Driver

RT9624B Description

® RT9624B Single Phase Synchronous Rectified Buck MOSFET Driver General .
The RT9624B is a high frequency, synchronous rectified, single phase MOSFET driver designed for normal MOSFET driving applications and high performanc.

RT9624B Features

* Drive Two N-MOSFETs
* Shoot Through Protection
* Embedded Bootstrap Diode
* Support High Switching Frequency
* Fast Output Rising Time
* Tri-State PWM Input for Output Shutdown
* Small SOP-8, SOP-8 (Exposed Pad) and 8-Lead WDFN Packages
* RoHS Compliant and Halogen

RT9624B Applications

* and high performance CPU VR driving capabilities. The RT9624B can be supplied from 4.5V to 13.2V. The applicable power stage VIN range is from 5V to 24V. The IC also builds in an internal power switch to replace external bootstrap diode. The RT9624B can support switching frequency efficiently up to

📥 Download Datasheet

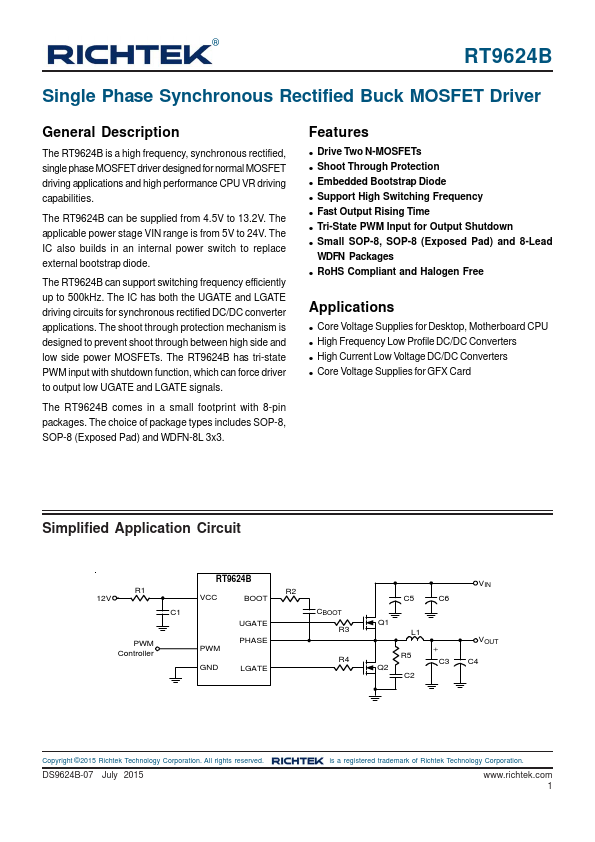

Preview of RT9624B PDF

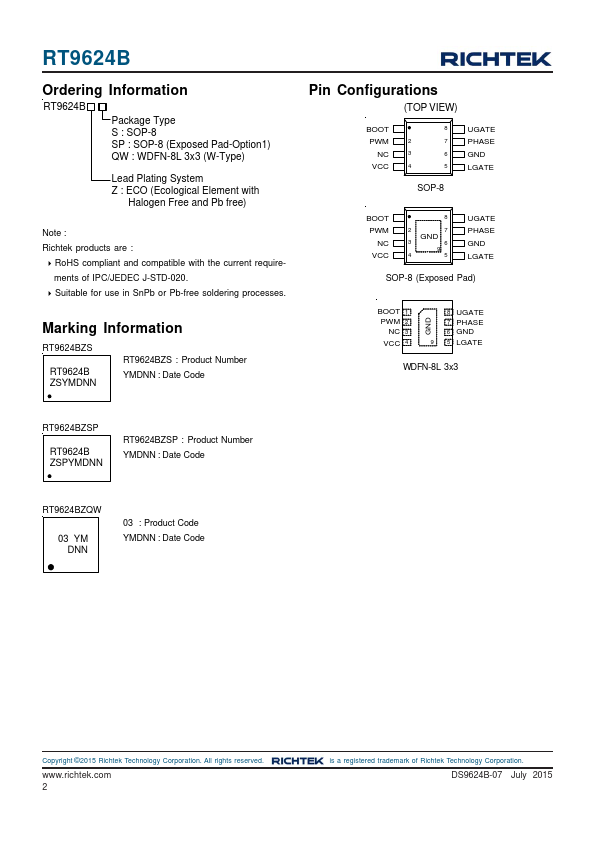

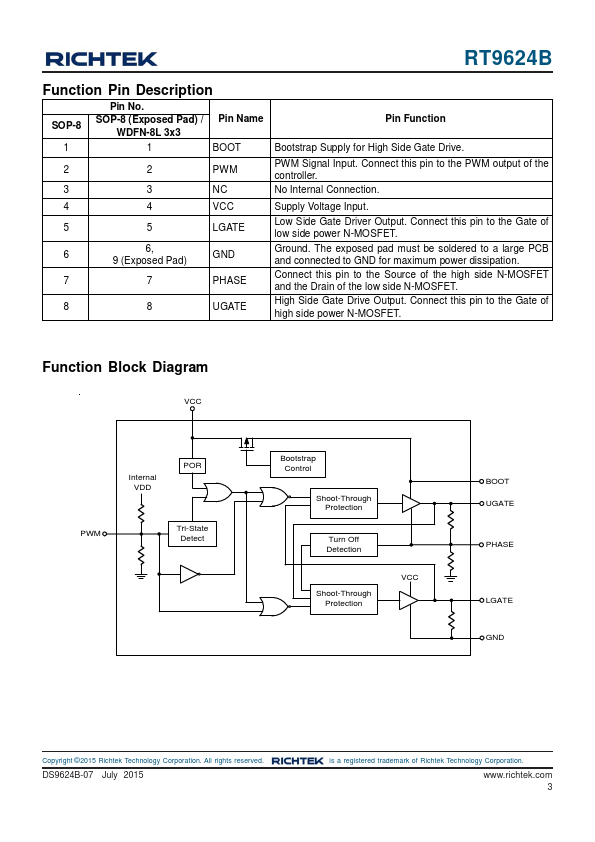

datasheet Preview Page 2 datasheet Preview Page 3
