RT9607

Dual Channel Synchronous-Rectified Buck MOSFET Driver

Richtek Technology

RT9607 Features

* z z z z z z z z z Drives Four N-MOSFETs Adaptive Shoot-Through Protection Propagation Delay 40ns Support High Switching Frequency Fast Output Rise Time 5V to 12V Gate-Drive Voltages for Optimal Efficiency Tri-State Input for Bridge Shutdown Supply Under-Voltage Protection RoHS Compliant and 100% Le

RT9607 General Description

The RT9607/A is a dual power channel MOSFET driver specifically designed to drive four power N-MOSFETs in a synchronous-rectified buck converter topology. These drivers combined with RichTek’ s series of Multi-Phase Buck PWM controllers provide a complete core voltage regulator solution for advanced.

RT9607 Datasheet (343.83 KB)

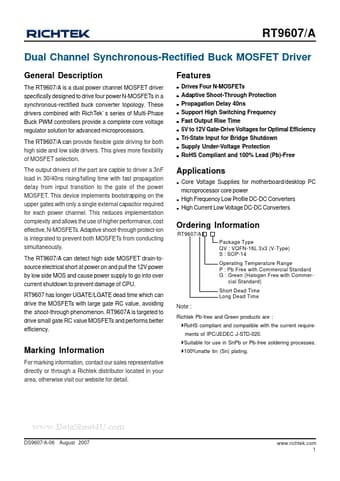

RT9607 Datasheet Preview — Preview of RT9607 PDF

Datasheet Details

Part number:

RT9607

Manufacturer:

Richtek Technology

File Size:

343.83 KB

Description:

Dual channel synchronous-rectified buck mosfet driver.
