RT9602, Dual Channel Synchronous-Rectified Buck MOSFET Driver

RT9602 Dual Channel Synchronous-Rectified Buck MOSFET Driver General .
The RT9602 is a dual power channel MOSFET driver specifically designed to drive four power N-Channel MOSFETs in a synchronous-rectified buck converter.

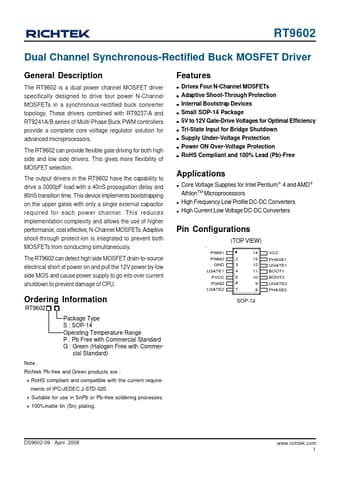

datasheet Preview Page 1 from Datasheet4u.com

RT9602-Richtek.pdf

RT9602 Datasheet Preview — Preview of RT9602 PDF

Datasheet Details

Part number:

RT9602

Manufacturer:

Richtek

File Size:

220.28 KB

Description:

Dual Channel Synchronous-Rectified Buck MOSFET Driver

Features

* z Drives Four N-Channel MOSFETs z Adaptive Shoot-Through Protection z Internal Bootstrap Devices z Small SOP-14 Package z 5V to 12V Gate-Drive Voltages for Optimal Efficiency z Tri-State Input for Bridge Shutdown z Supply Under-Voltage Protection z Power ON Over-Voltage Protection z RoHS Compliant a

Applications

* z Core Voltage Supplies for Intel Pentium® 4 and AMD® AthlonTM Microprocessors z High Frequency Low Profile DC-DC Converters z High Current Low Voltage DC-DC Converters Pin Configurations (TOP VIEW) PWM1 PWM2 GND LGATE1 PVCC PGND LGATE2 2 3 4 5 6 7 14 VCC 13 PHASE1 12 UGATE1 11 BOOT1 10 BOOT2 9
