RT9611A Datasheet - Richtek

Synchronous Rectified Buck MOSFET Drivers

RT9611A Features

* z Drive Two N-MOSFETs z Adaptive Shoot Through Protection z Embedded Bootstrap Diode z Support High Switching Frequency z Fast Output Rise Time z Tri-State Input for Bridge Shutdown z Disable Control Input z Small SOP-8, SOP-8 (Exposed Pad) and 8-Lead WDFN Packages z RoHS Compliant and Halogen Free

RT9611A General Description

The RT9611A/B is a high frequency, synchronous rectified, single phase dual MOSFET driver designed to adapt from normal MOSFET driving applications to high performance CPU VR driving capabilities. The RT9611A/B can be utilized under both VCC = 5V or VCC = 12V applications. The RT9611A/B also builds .

RT9611A Datasheet (219.03 KB)

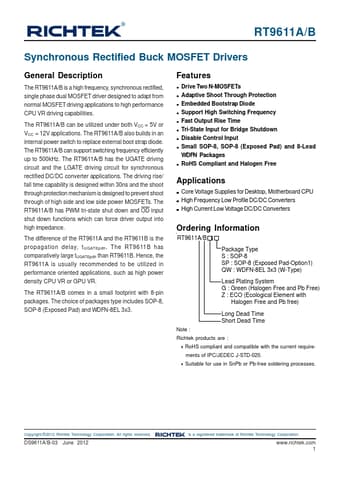

RT9611A Datasheet Preview — Preview of RT9611A PDF

Datasheet Details

Part number:

RT9611A

Manufacturer:

Richtek

File Size:

219.03 KB

Description:

Synchronous rectified buck mosfet drivers.
