RT9912A - Multi-Channel Power Management IC

Richtek

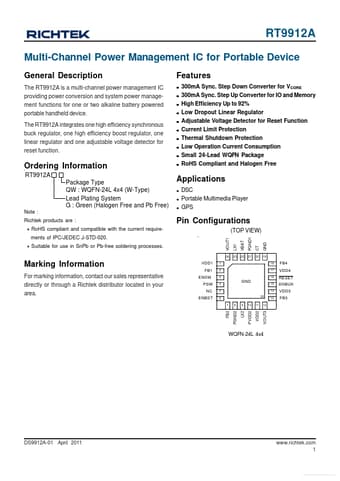

RT9912A Datasheet Preview — Preview of RT9912A PDF

Datasheet Details

Part number	RT9912A
Manufacturer	Richtek ↗
File Size	253.88 KB
Description	Multi-Channel Power Management IC
Datasheet	RT9912A_Richtek.pdf

RT9912A Product details

Description

The RT9912A is a multi-channel power management IC providing power conversion and system power management functions for one or two alkaline battery powered portable handheld device.

Features

z z z z z z z z z 300mA Sync. Step Down Converter for VCORE 300mA Sync. Step Up Converter for IO and Memory High Efficiency Up to 92% Low Dropout Linear Regulator Adjustable Voltage Detector for Reset Function Current Limit Protection Thermal Shutdown Protection Low Operation Current Consumption Small 24-Lead WQFN Package RoHS Compliant and Halogen Free Ordering Information RT9912A Package Type QW : WQFN-24L 4x4 (W-Type) Lead Plating System G : Green (Halogen Free and Pb Free) Note : Richtek p.
