RT9919

7 Channel DC/DC Converters

Richtek

RT9919 Features

* l l l l l l CH1 is a synchronous step-up output for motor or DSC system I/O power CH2 is a selectable synchronous step-up/step-down output for motor or DSC system I/O power CH3 and CH4 are synchronous step-down outputs for DSP core and memory power supply CH5 is a high voltage step-up output for CC

RT9919 General Description

The RT9919 is a complete power supply solution for digital still cameras and other hand held devices. The RT9919 is a multi-channel DC/DC converter including two step-up DC/DC converters, two step-down DC/DC converters, one selectable step-up/step-down DC/DC converter, one inverting DC/DC converter .

RT9919 Datasheet (427.08 KB)

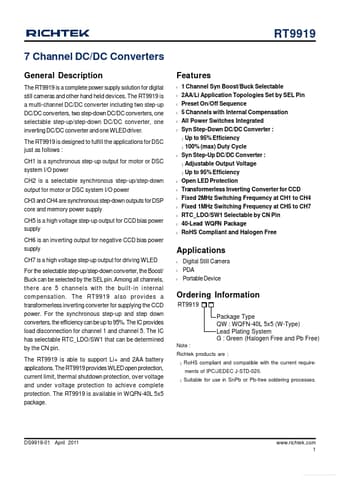

RT9919 Datasheet Preview — Preview of RT9919 PDF

Datasheet Details

Part number:

RT9919

Manufacturer:

Richtek

File Size:

427.08 KB

Description:

7 channel dc/dc converters.
