TF2003 Datasheet - Riedon Powertron

TF2003 Thick Film Resistors

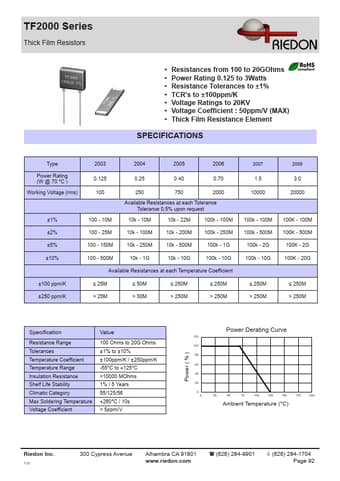

www.DataSheet.co.kr TF2000 Series Thick Film Resistors Resistances from 100 to 20GOhms Power Rating 0.125 to 3Watts Resistance Tolerances to ±1% TCR’s to ±100ppm/K Voltage Ratings to 20KV Voltage Coefficient : 50ppm/V (MAX) Thick Film Resistance Element SPECIFICATIONS Type Power Rating (W @ 70 °C ) Working Voltage (rms) 2003 0.125 100 2004 0.25 250 2005 0.40 750 2006 0.70 2000 2007 2009 1.5 10000 3.0 20000 Available Res.

TF2003 Datasheet (389.87 KB)

TF2003 Datasheet Preview — Preview of TF2003 PDF

Datasheet Details

Part number:

TF2003

Manufacturer:

Riedon Powertron

File Size:

389.87 KB

Description:

Thick film resistors.
