TF201G

2.0A Glass Passivated Fast Recovery Rectifier

TAITRON

TF201G Features

* Low forward voltage drop High current capability High reliability High forward surge current capability High temperature soldering guaranteed 250°C/10 seconds /.0375" (9.5mm) lead length, 5lbs (2.3kg) tension

* RoHS Compliance D0-15 Mechani

TF201G General Description

Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current TF 201G 50 35 50 TF 202G 100 70 100 TF 203G 200 140 200 TF 204G 400 280 400 2.0 TF 205G 600 420 600 TF 206G 800 560 800 TF 207G 1000 700 1000 U.

TF201G Datasheet (183.48 KB)

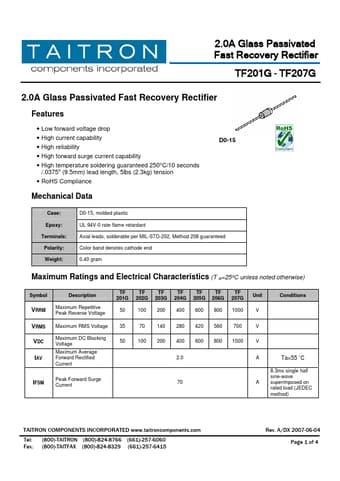

TF201G Datasheet Preview — Preview of TF201G PDF

Datasheet Details

Part number:

TF201G

Manufacturer:

TAITRON

File Size:

183.48 KB

Description:

2.0a glass passivated fast recovery rectifier.
