PF2200 TO-220 Power Thin Film Resistors

Part Type - Resistance - Tolerance - TCR Example: PF2203 0.5 Ohm 1% 100ppm Riedon Inc. © Riedon, Inc. 300 Cypress Avenue Alhambra CA 91801 (626) 284-9901 www.riedon.com sales@riedon.com (626) 284-1704 Revised: 201901_002 PF2200 Series TO-220 Power Thin Film Resistors SPECIFICATIONS (co.

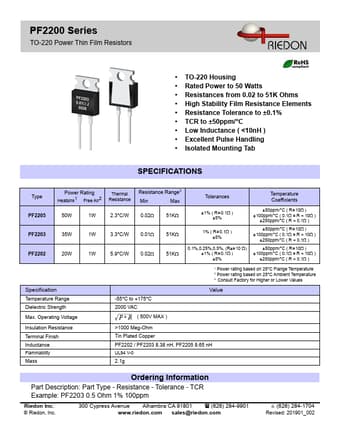

PF2200 Series TO-220 Power Thin Film Resistors TO-220 Housing Rated Power to 50 Watts Resistances from 0.02 to 51K Ohms High Stability Film Resistance Elements Resistance Tolerance to ±0.1% TCR to ±50ppm/°C Low Inductance ( <10nH ) Excellent Pulse Handling Isolated Mounting Tab SPECIFICATIONS Type PF2205 Power Rating Heatsink1 Free Air2 50W 1W PF2203 35W 1W PF2202 20W 1W Specification .
