PF2274 Thin & Thick Film Power Resistors

Part Type - Terminal Style - Resistance - Tolerance PF2274Y 10 Ohms 5% Part Type PF 2272 PF 2274 PF 2276 Riedon Inc. © Riedon, Inc. Terminal Style ( *) Y Z Resistance 0.1 to 100K Ohms 50 to 1K Ohms Tolerance 5% ( * *) ( *) For standard terminal style omit letter ( * *) 1% To.

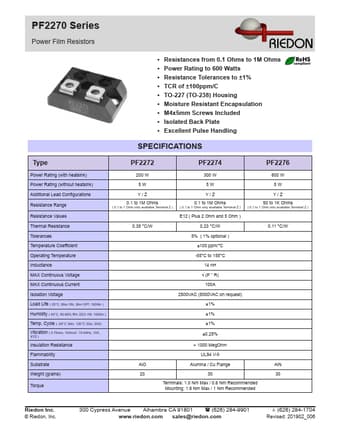

PF2270 Series Power Film Resistors Resistances from 0.1 Ohms to 1M Ohms Power Rating to 600 Watts Resistance Tolerances to ±1% TCR of ±100ppm/C TO-227 (TO-238) Housing Moisture Resistant Encapsulation M4x5mm Screws Included Isolated Back Plate Excellent Pulse Handling SPECIFICATIONS Type PF2272 PF2274 PF2276 Power Rating (with heatsink) 200 W 300 W 600 W Power Rating (without heatsink) 5.
