RW1067C-0B-002 Datasheet - RockWorks

RW1067C-0B-002 34COM/80SEG DRIVER & CONTROLLER

Modify Time Characteristics 、 2006/04/11 AC Characteristics、DC Characteristics  2006/07/05 Pad Configuration add Substrate connects to VSS Add CHIP LAYOUT 2006/07/14 Add 4-PIN、3-PIN SPI Circuit and initializing by instruction 2006/09/01 Add 4-line display mode circuit 2006/10/25 Add the Hebrew.
RW1067C-0B-002 34COM/80SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD INTRODUCTION RW1067 is a dot matrix LCD driver & controller LSI which is fabricated by low power CMOS technology. It can display 4 lines x 16 (5 x 8 dot format) or 2 lines x 16 (5 x 8 dot format). With the extended CGROM, maximum 1008 fonts can be included. Customized codes are available. FUNCTIONS - Character type dot matrix LCD driver & controller - Internal drivers: 34 common and 80 segment or 18 common and 80 segment output - .

RW1067C-0B-002 Features

* - Internal Memory - Character Generator ROM (CGROM): 9,600 bits x 1+10,240 bits x 3 (240+256 x 3 characters x 5 x 8 dot) - Character Generator RAM (CGRAM): 64 x 8 bits (8 characters x 5 x 8 dot) - Icon RAM (SEGRAM): 16 x 8 bits (80 icons max.) - Display Data RAM (DDRAM): 80 x 10 bits (80 characters

RW1067C-0B-002 Datasheet (1.90 MB)

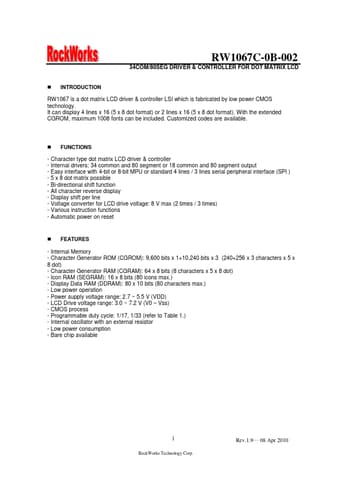

Preview of RW1067C-0B-002 PDF
RW1067C-0B-002 Datasheet Preview Page 2 RW1067C-0B-002 Datasheet Preview Page 3

Datasheet Details

Part number:

RW1067C-0B-002

Manufacturer:

RockWorks

File Size:

1.90 MB

Description:

34com/80seg driver & controller.
