RW1067C-0D-004 Datasheet - RockWorks

RW1067C-0D-004 - 34COM/80SEG DRIVER & CONTROLLER

RW1067C-0D-004 34COM/80SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD INTRODUCTION RW1067 is a dot matrix LCD driver & controller LSI which is fabricated by low power CMOS technology.

It can display 4 lines x 16 (5 x 8 dot format) or 2 lines x 16 (5 x 8 dot format).

It is ideal for multilanguage application.

Standard code RW1067-0D can support up to 26 different languages.

With the extended CGROM, maximum 1008 fonts can be included.

Customized codes are available.

FUNCTIONS - Cha

RW1067C-0D-004 Features

* - Internal Memory - Character Generator ROM (CGROM): 9,600 bits x 1+10,240 bits x 3 (240+256 x 3 characters x 5 x 8 dot) - Character Generator RAM (CGRAM): 64 x 8 bits (8 characters x 5 x 8 dot) - Icon RAM (SEGRAM): 16 x 8 bits (80 icons max.) - Display Data RAM (DDRAM): 80 x 10 bits (80 characters

RW1067C-0D-004-RockWorks.pdf

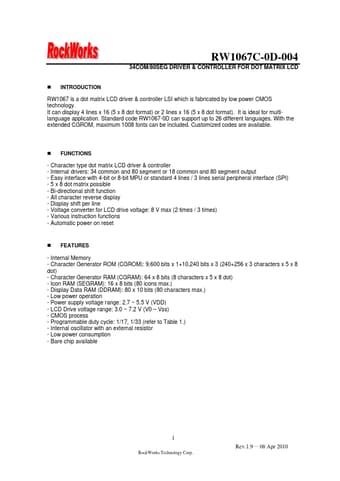

Preview of RW1067C-0D-004 PDF
RW1067C-0D-004 Datasheet Preview Page 2 RW1067C-0D-004 Datasheet Preview Page 3

Datasheet Details

Part number:

RW1067C-0D-004

Manufacturer:

RockWorks

File Size:

121.88 KB

Description:

34com/80seg driver & controller.
