2SA1727 - High-voltage Switching Transistor

Datasheet Summary

Features

  • 1) High breakdown voltage, BVCEO= 400V. 2) Low saturation voltage, typically VCE (sat) = 0.3V at IC / IB = 3) High switching speed, typically tf : 1 s at IC = 100mA. 4) Wide SOA (safe operating area). 100mA / 10mA. Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation 2SA1812 2SA1727 2SA1776 Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Limits 400 400.

📥 Download Datasheet

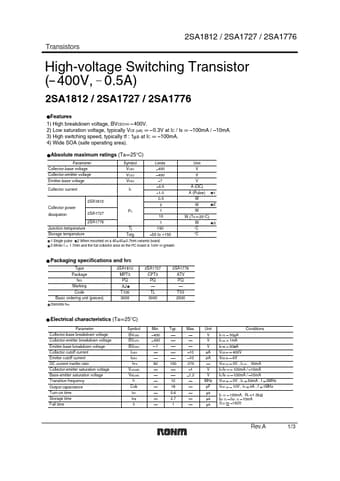

Datasheet preview – 2SA1727
