2SA933AS General Purpose Transistor

2SA933AS Description

Transistors 2SA1037AK / 2SA1576A / 2SA1774 / 2SA2029 / 2SA933AS General Purpose Transistor ( *50V, *0.15A) 2SA1037AK / 2SA1576A / 2SA.

2SA933AS Features

* 1) Excellent hFE linearity. 2) Complements the 2SC2412K / 2SC4081 / 2SC4617 / 2SC5658 / 2SC1740S. !External dimensions (Units : mm) 2SA1037AK (1) 2SA1576A (1) 0.95 0.95 1.9 2.9 0.65 0.65 0.8 0.7 0.4 (3) 0.3 (2) (3) 1.25 1.6 2.8 0.15 0.15 2.1 0.2 (2) 0.8 1.1 !Structure Epitaxial planar

📥 Download Datasheet

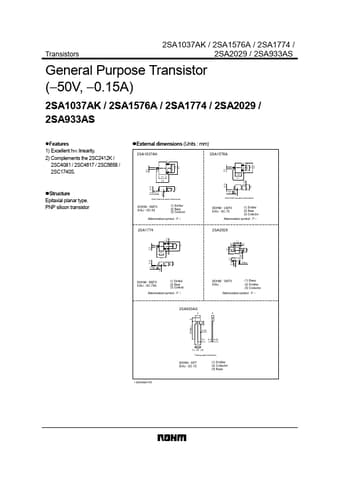

Preview of 2SA933AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA933AS
Manufacturer
ROHM ↗
File Size
76.38 KB
Datasheet
2SA933AS_Rohm.pdf
Description
General Purpose Transistor
