Part number:
2SB1184
Manufacturer:
File Size:
154.44 KB
Description:
Power transistor.

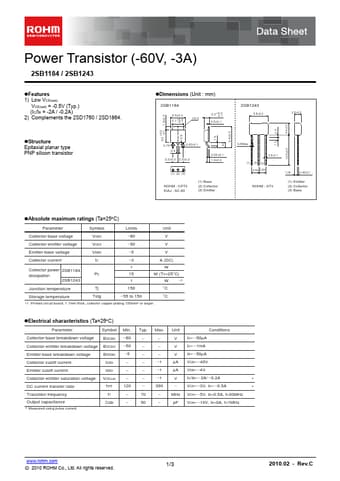

* 1) Low VCE(sat). VCE(sat) = -0.5V (Typ.) (IC/IB = -2A / -0.2A) 2) Complements the 2SD1760 / 2SD1864.
* Dimensions (Unit : mm) 2SB1184 6.5±0.2 5.1 +0.2
* 0.1 C0.5 2.3 +0.2
* 0.1 0.5±0.1 2SB1243 6.8±0.2 2.5±0.2 1.5±0.3 4.4±0.2 1.0 0.9 1.5 2.5 9.5±0.5 +0.3
* 0.1
2SB1184
154.44 KB
Power transistor.
