2SK2103 - Small switching Transistors

2SK2103 Description

Transistors Small switching (30V, 2A) 2SK2103 F.

2SK2103 Features

* 1) Low on-resistance. 2) Fast switching speed. 3) Wide SOA (safe operating area). 4) Low-voltage drive (4V). 5) Easily designed drive circuits. 6) Easy to use in parallel. FStructure Silicon N-channel MOSFET FExternal dimensions (Units: mm) FAbsolute maximum ratings (Ta = 25_C) FPackaging specific

📥 Download Datasheet

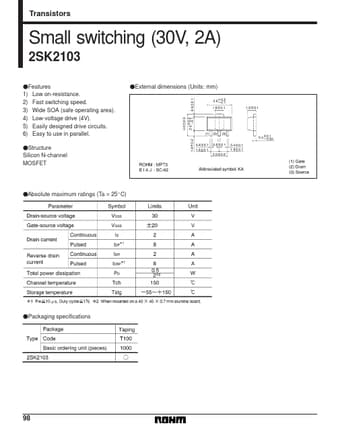

Preview of 2SK2103 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2103
Manufacturer
ROHM ↗
File Size
127.68 KB
Datasheet
2SK2103_Rohm.pdf
Description
Small switching Transistors
