BA12003B, Darlinton Transistor Array

Datasheet 7 Circuits Darlinton Transistor Array BA12003B BA12003BF BA12004B BA12004BF General .
BA12003B/BF,BA12004B/BFare darlinton transistor array consist of 7circuits, input resistor to limit base current and output surge absorption clamp dio.

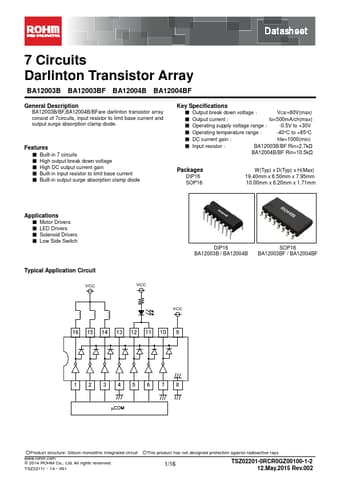

datasheet Preview Page 1 from Datasheet4u.com

BA12003B_Rohm.pdf

BA12003B Datasheet Preview — Preview of BA12003B PDF

Datasheet Details

Part number:

BA12003B

Manufacturer:

ROHM ↗

File Size:

0.96 MB

Description:

Darlinton Transistor Array

Features

* Built-in 7 circuits
* High output break down voltage
* High DC output current gain
* Built-in input resistor to limit base current
* Built-in output surge absorption clamp diode Key Specifications
* Output break down voltage： VCE=60V(max)
* Output current： Io=500mA

Applications

* Motor Drivers
* LED Drivers
* Solenoid Drivers
* Low Side Switch Typical Application Circuit VCC VCC DIP16 SOP16 BA12003B / BA12004B BA12003BF / BA12004BF VCC 16 15 14 13 12 11 10 9 12345678 μCOM ○Product structure: Silicon monolithic integrated circuit www. rohm. com © 2014 R
