BA12004B Darlinton Transistor Array

BA12004B Description

Datasheet 7 Circuits Darlinton Transistor Array BA12003B BA12003BF BA12004B BA12004BF General .
BA12003B/BF,BA12004B/BFare darlinton transistor array consist of 7circuits, input resistor to limit base current and output surge absorption clamp dio.

BA12004B Features

* Built-in 7 circuits
* High output break down voltage
* High DC output current gain
* Built-in input resistor to limit base current
* Built-in output surge absorption clamp diode Key Specifications
* Output break down voltage： VCE=60V(max)
* Output current： Io=500mA

BA12004B Applications

* Motor Drivers
* LED Drivers
* Solenoid Drivers
* Low Side Switch Typical Application Circuit VCC VCC DIP16 SOP16 BA12003B / BA12004B BA12003BF / BA12004BF VCC 16 15 14 13 12 11 10 9 12345678 μCOM ○Product structure: Silicon monolithic integrated circuit www. rohm. com © 2014 R

📥 Download Datasheet

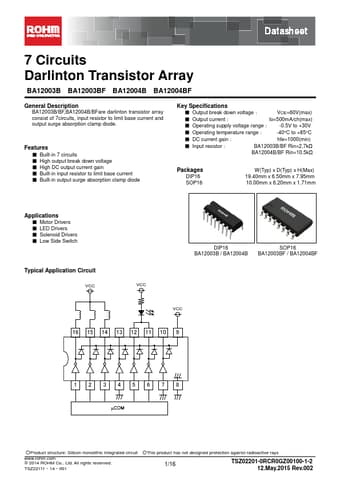

Preview of BA12004B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA12004B
Manufacturer
ROHM ↗
File Size
0.96 MB
Datasheet
BA12004B_Rohm.pdf
Description
Darlinton Transistor Array
