BA3899F - EL driver for portable sets

Rohm

📥 Download Datasheet

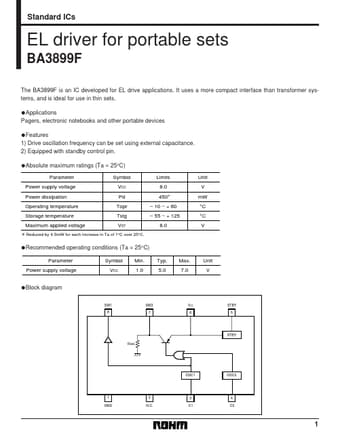

BA3899F Datasheet Preview — Preview of BA3899F PDF

Datasheet Details

Part number: BA3899F
Manufacturer: ROHM ↗
File Size: 100.62 KB
Datasheet: BA3899F_Rohm.pdf
Description: EL driver for portable sets

BA3899F Product details

Description

Pin No.. Pin voltage. VCC Internal equivalent circuit. GND pin Function. 1k 3 C1 I/O. C1 OSC1 oscillator circuit; external capacitor pin GND VCC 200Ω 4 C2 I/O. C2 OSC2 oscillator circuit; external capacitor pin GND 1k STBY 50k Standby control pin (HIGH state: standby cancelled) ᭺When applying resistance, etc.to the STBY pin, be careful not to exceed the threshold values..

Features

1) Drive oscillation frequency can be set using external capacitance. 2) Equipped with standby control pin.
Absolute maximum ratings (Ta = 25°C) Parameter Power supply voltage Power dissipation Operating temperature Storage temperature Maximum applied voltage Symbol VCC Pd Topr Tstg VST Limits 8.0 450∗.
10 ~ + 60.
55 ~ + 125 8.0 Unit V mW °C °C V ∗ Reduced by 4.5mW for each increase in Ta of 1°C over 25°C.
Recommended operating conditions (Ta = 25.
