BA3963

System power supply for CD player equipped audio systems

BA3963 Datasheet (96.68 KB)

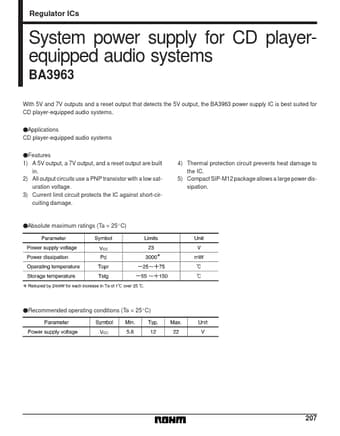

Preview of BA3963 PDF Datasheet

Datasheet Details

Part number:

BA3963

Manufacturer:

ROHM ↗

File Size:

96.68 KB

Description:

System power supply for cd player equipped audio systems

BA3963 Features

* 1) A 5V output, a 7V output, and a reset output are built in. 2) All output circuits use a PNP transistor with a low saturation voltage. 3) Current limit circuit protects the IC against short-circuiting damage. 4) Thermal protection circuit prevents heat damage to the IC. 5) Compact SIP-M12 package

BA3963 General Description

208 Regulator ICs FInput / output circuits BA3963 209 Regulator ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C and VCC = 12V) BA3963 210 Regulator ICs FCircuit operation OUT 5V rises when MODE 1 is 1.4V (Typ.), and OUT 7V rises when MODE 2 is 1.4V (Typ.). The reset outpu.
