BD46231G VOLTAGE DETECTOR

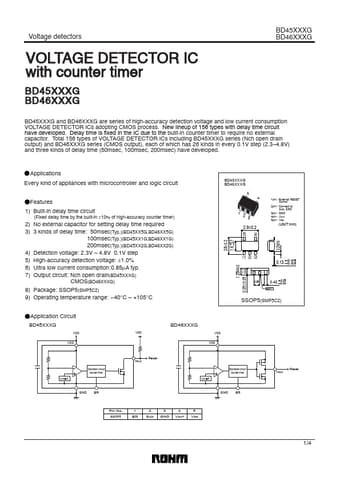

Voltage detectors BD45XXXG BD46XXXG VOLTAGE DETECTOR IC with counter timer BD45XXXG BD46XXXG BD45XXXG and BD46XXXG are series of high-accuracy detection voltage and low current consumption VOLTAGE DETECTOR ICs adopting CMOS process. New lineup of 156 types with delay time circuit have developed. Delay time is fixed in the IC due to the built-in counter timer to require no external capacitor. Total 156 types of VOLTAGE DETECTOR ICs including BD45XXXG series (Nch open drain output) and BD46XXXG .

BD46231G Features

* 1) Built-in delay time circuit 2) No external capacitor for setting delay time required 3) 3 kinds of delay time: 50msec(Typ.)(BD45XX5G,BD46XX5G) 100msec(Typ.)(BD45XX1G,BD46XX1G) 200msec(Typ.)(BD45XX2G,BD46XX2G) 4) Detection voltage: 2.3V ~ 4.8V 0.1V step 5) High-accuracy detection voltage: ±1.0% 6)
