BD4142HFV - CMOS Voltage Detector

BD4142HFV Description

Datasheet Free Delay Time Setting CMOS Voltage Detector IC BD4142HFV *General .
BD4142HFV is 1ch voltage detector IC for monitoring an input voltage line.

BD4142HFV Features

* Open Drain Output
* Built in Under Voltage LockOut (UVLO) Circuit
* Delay Time Controlled by External Capacitor
* Very small and low height package
* PGOOD HIGH Output

BD4142HFV Applications

* Laptop PC, Desktop PC, LCD-TV, Printer, STB, Digital Appliances, and more.
* Key Specifications
* Input voltage range: 3.0V to 5.5V
* Detected voltage: 500mV(Typ)
* PGOOD output ON resistance: 100Ω(Typ)
* Bias current: 7.5μA (Typ)
* Operating temperature range (Ta):

📥 Download Datasheet

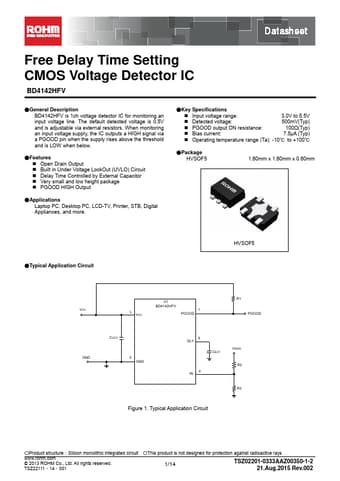

Preview of BD4142HFV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD4142HFV
Manufacturer
ROHM ↗
File Size
577.38 KB
Datasheet
BD4142HFV-ROHM.pdf
Description
CMOS Voltage Detector
