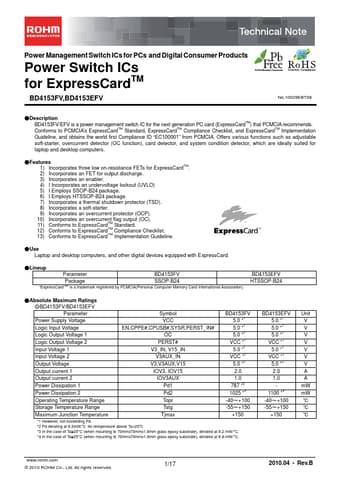

BD4153FV Power switch for ExpressCard

BD4153FV/EFV is a power management switch IC for the next generation PC card (ExpressCardTM) that PCMCIA recommends. Conforms to PCMCIA’s ExpressCardTM Standard, ExpressCardTM Compliance Checklist, and ExpressCardTM Implementation Guideline, and obtains the world first Compliance ID “EC100001” from .

BD4153FV Features

* 1) Incorporates three low on-resistance FETs for ExpressCardTM. 2) Incorporates an FET for output discharge. 3) Incorporates an enabler. 4) I Incorporates an undervoltage lockout (UVLO) 5) I Employs SSOP-B24 package. 6) I Employs HTSSOP-B24 package. 7) Incorporates a thermal shutdown protector (TSD)
