BD46E412

CMOS Voltage Detector

Rohm

BD46E412 Features

* Counter Timer Built-in

* No delay time setting capacitor required

* Ultra-low current consumption

* Two output types (Nch open drain and CMOS output)

* Package SSOP5 is similar to SOT-23-5 (JEDEC)

* AEC-Q100 Qualified

* Key Specifications

* Detection voltage: 2.3V

BD46E412 General Description

ROHM’s BD45Exxxx-M and BD46Exxxx-M series are highly accurate, low current consumption Voltage Detector IC series. Because the counter timer delay circuit is built into those series, an external capacitor for the delay time setting is unnecessary. The lineup was established with two output types (Nc.

BD46E412 Datasheet (688.26 KB)

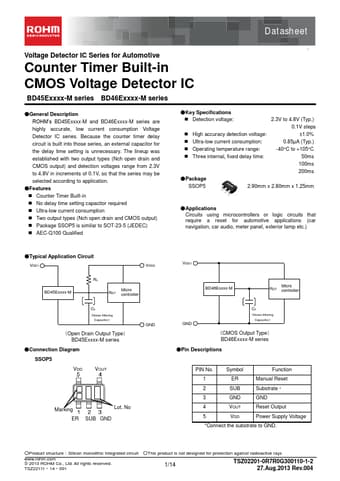

BD46E412 Datasheet Preview — Preview of BD46E412 PDF

Datasheet Details

Part number:

BD46E412

Manufacturer:

ROHM ↗

File Size:

688.26 KB

Description:

Cmos voltage detector.
Datasheet Voltage Detector IC Series for Automotive Counter Timer Built-in CMOS Voltage Detector IC BD45Exxxx-M series BD46Exxxx-M series
*Gene.
