BD49101AEFS-M Datasheet - Rohm

Multi-channel Power Supplier

BD49101AEFS-M Features

* AEC-Q100 Qualified(Note1)

* Integrated 7 channels of Power Supply for Car Audio 2 DCDC (Integrated 1 Controller ) 5 REG

* 1 High Side Switch channel

* Integrated Low Power Standby REG for MCU Power Supply

* REG4 Cable Impedance Compensation

* I2C Interface

* Selectable

BD49101AEFS-M General Description

The BD49101AEFS-M LSI is a multi-channel power supply IC that can provide all necessary supply voltages for automobile audio systems. The IC has two Switching Power Supplies (DCDC), five Regulators (REG) and a High Side switch. This single power supply system can provide the required voltages to all.

BD49101AEFS-M Datasheet (2.02 MB)

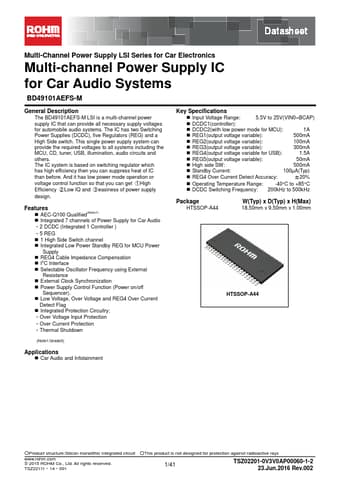

Preview of BD49101AEFS-M PDF

Datasheet Details

Part number:

BD49101AEFS-M

Manufacturer:

ROHM ↗

File Size:

2.02 MB

Description:

Multi-channel power supplier.
Datasheet Multi-Channel Power Supply LSI Series for Car Electronics Multi-channel Power Supply IC for Car Audio Systems BD49101AEFS-M General Descr.
