BD5250-2C - Free Time Delay Setting CMOS Voltage Detector

BD5250-2C Description

Datasheet Voltage Detector (Reset) IC Series for Automotive Application Free Time Delay Setting CMOS Voltage Detector (Reset) IC BD52xx-2C Series and.
ROHM's BD52xx-2C and BD53xx-2C series are highly accurate, low current consumption Voltage Detector ICs with a capacitor controlled time delay.

BD5250-2C Features

* AEC-Q100 Qualified (Note1)
* Nano Energy
* Delay Time Setting controlled by external capacitor
* Two output types (Nch open drain and CMOS output)
* Very small, lightweight and thin package
* Package SSOP5 is similar to SOT-23-5 (JEDEC) (Note1: Grade 1) Key Specifications

📥 Download Datasheet

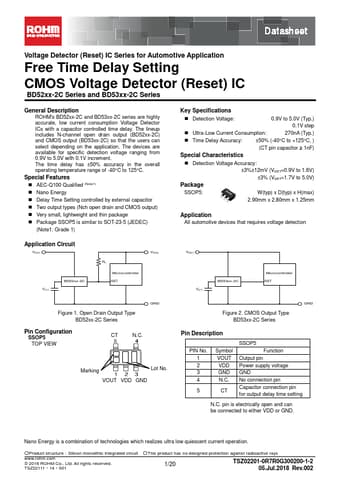

Preview of BD5250-2C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD5250-2C
Manufacturer
ROHM ↗
File Size
1.35 MB
Datasheet
BD5250-2C-Rohm.pdf
Description
Free Time Delay Setting CMOS Voltage Detector
