BD5468GUL Datasheet - Rohm

BD5468GUL, Analog Input Monaural Class-D Speaker Amplifier

Small-sized Class-D Speaker Amplifiers Analog Input Monaural Class-D Speaker Amplifier BD5468GUL No.10101EAT08 *.
BD5468GUL is a monaural Class-D speaker amplifier that contained ALC function for mobile phone, portable type electronic devices etc.

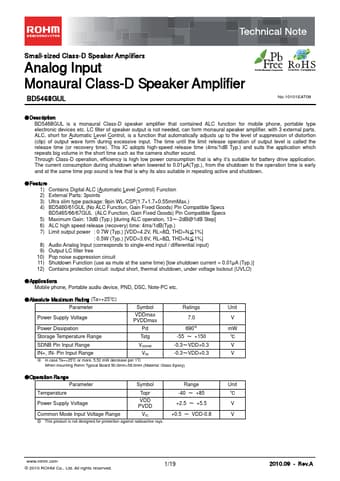

datasheet Preview Page 1 from Datasheet4u.com

BD5468GUL-Rohm.pdf

BD5468GUL Datasheet Preview — Preview of BD5468GUL PDF

Datasheet Details

Part number:

BD5468GUL

Manufacturer:

ROHM ↗

File Size:

764.62 KB

Description:

Analog Input Monaural Class-D Speaker Amplifier

Applications

* Mobile phone, Portable audio device, PND, DSC, Note-PC etc.
* Absolute Maximum Rating (Ta=+25℃) Parameter Symbol Ratings Power Supply Voltage Power Dissipation VDDmax PVDDmax Pd 7.0 690※ Storage Temperature Range Tstg -55 ～ +150 SDNB Pin Input Range VSDNB -0.3～VDD+0.3 IN+, IN- Pin In
