BD5469GUL - Analog Input Monaural Class-D Speaker Amplifier

BD5469GUL Description

Datasheet Small-sized Class-D Speaker Amplifiers Analog Input Monaural Class-D Speaker Amplifier BD5469GUL General .
BD5469GUL is a monaural Class-D speaker amplifier that has integrated ALC function suitable for mobile phones, portable type electronic devices, etc.

BD5469GUL Applications

* Through Class-D operation, the IC can achieve high efficiency and low power consumption which makes it suitable for battery driven applications. The current consumption in shutdown mode is lowered to 0.01μA(Typ). Start

📥 Download Datasheet

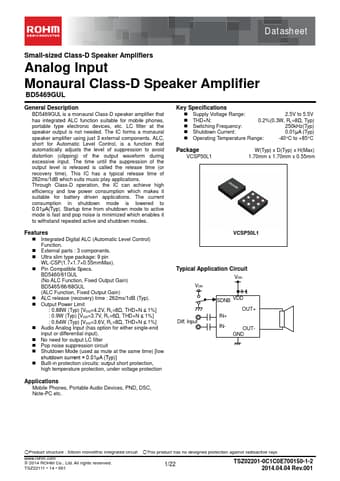

Preview of BD5469GUL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD5469GUL
Manufacturer
ROHM ↗
File Size
944.45 KB
Datasheet
BD5469GUL-ROHM.pdf
Description
Analog Input Monaural Class-D Speaker Amplifier
