BD50FD0WHFP-TR, BD50FD0WFP2-E2 - 2A LDO Regulators

BD50FD0WHFP-TR Description

Datasheet Single-Output LDO Regulators 35V Voltage Resistance 2A LDO Regulators BDxxFD0 series .
The BDxxFD0 series are low-saturation regulators.

BD50FD0WHFP-TR Features

* Output current capability: 2A
* Output voltage: Variable, Fixed (1.5V / 1.8V / 2.5V / 3.0V / 3.3V / 5.0V / 8.0V / 9.0V / 12V / 15V / 16V)
* ±1% (±1.5%:BD15/18/25FD0W) High output voltage accuracy (Ta=25°C)
* Low saturation with PDMOS output
* Built-in over-current protection ci

BD50FD0WHFP-TR Applications

* General Purpose Ordering Part Number BD x x F D 0W x x x - x x Output voltage 00: Variable 15:1.5V 18:1.8V 25:2.5V 30:3.0V 33:3.3V 50:5.0V 80:8.0V 90:9.0V J2:12.0V J5:15.0V J6:16.0V Input Voltage, Current capacity FD0: 35V, 2A Enable W: With CTL(Enable) Package HFP: HRP5 FP2: TO263-5 Packaging

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD50FD0WHFP-TR, BD50FD0WFP2-E2. Please refer to the document for exact specifications by model.

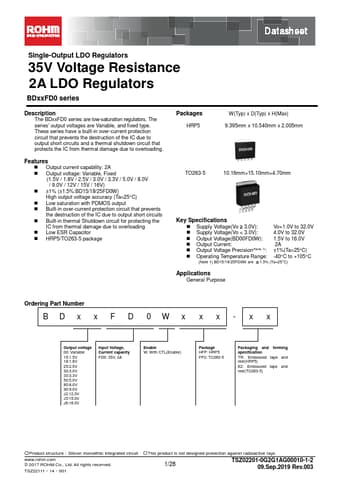

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD50FD0WHFP-TR, BD50FD0WFP2-E2
Manufacturer
ROHM ↗
File Size
2.24 MB
Datasheet
BD50FD0WFP2-E2-ROHM.pdf
Description
2A LDO Regulators
Note
This datasheet PDF includes multiple part numbers: BD50FD0WHFP-TR, BD50FD0WFP2-E2.
Please refer to the document for exact specifications by model.
