BD5002, BD5002_Won - PRESS-FIT DIODE

BD5002 Description

® WON-TOP ELECTRONICS .

BD5002 Features

* Diffused Junction
* Low Leakage
* Low Cost
* High Surge Current Capability
* Typical IR less than 5.0µA Mechanical Data
* Case: 13mm Bosch Type Press-Fit
* Terminals: Contact Areas Readily Solderable
* Polarity: Cathode to Case (Reverse Units Are Available Upon Req

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD5002, BD5002_Won. Please refer to the document for exact specifications by model.

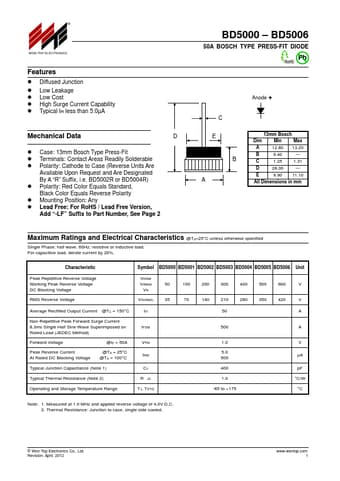

datasheet Preview Page 2

Datasheet Details

Part number
BD5002, BD5002_Won
Manufacturer
Won-Top Electronics
File Size
24.04 KB
Datasheet
BD5002_Won-TopElectronics.pdf
Description
PRESS-FIT DIODE
Note
This datasheet PDF includes multiple part numbers: BD5002, BD5002_Won.
Please refer to the document for exact specifications by model.
