BD500 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

BD500

Manufacturer:

INCHANGE

File Size:

189.80kb

Download:

📄 Datasheet

Description:

Pnp transistor.

  • Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -50V(Min) -80V(Min)
  • High Power Dissipation
  • Minimum Lot-

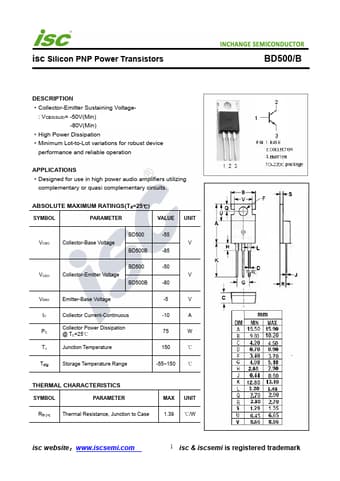

  • Datasheet Preview: BD500 📥 Download PDF (189.80kb)
    Page 2 of BD500

    BD500 Application

    • Applications
    • Designed for use in high power audio amplifiers utilizing complementary or quasi complementary circuits. ABSOLUTE MAXIMUM RAT
