BD5005P, BD5005N - 50 AMP BLOCK DIODES

BD5005P Description

BD5005N THRU BD5005P 50 AMP BLOCK DIODES .

BD5005P Features

* . . High current capability . . High voltage available . . Glass passivated die construction . . High surge current capability .50 A 125℃,. 50Ampere Operation At TL=125℃ With No Thermal Runaway MECHANICAL DATA . BD5005N BD5005-N N-Lead ,P-Case BLOCK DIODE . BD5005P BD5005-P P-Lead ,N-Case Dimension in

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD5005P, BD5005N. Please refer to the document for exact specifications by model.

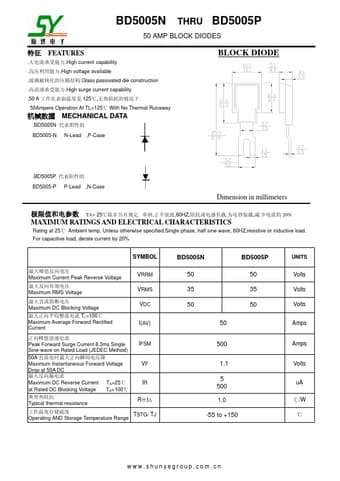

datasheet Preview Page 2

Datasheet Details

Part number
BD5005P, BD5005N
Manufacturer
Shunye
File Size
194.75 KB
Datasheet
BD5005N-Shunye.pdf
Description
50 AMP BLOCK DIODES
Note
This datasheet PDF includes multiple part numbers: BD5005P, BD5005N.
Please refer to the document for exact specifications by model.
