BD506P, BD506N - 50 AMP BLOCK DIODES

BD506P Description

BD506N THRU BD506P 50 AMP BLOCK DIODES .

BD506P Features

* . . High current capability . . High voltage available . . Glass passivated die construction . . High surge current capability .50 A 125℃,. 50Ampere Operation At TL=125℃ With No Thermal Runaway MECHANICAL DATA . BD506N BD506-N N-Lead ,P-Case BLOCK DIODE . BD506P BD506-P P-Lead ,N-Case Dimension in mill

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD506P, BD506N. Please refer to the document for exact specifications by model.

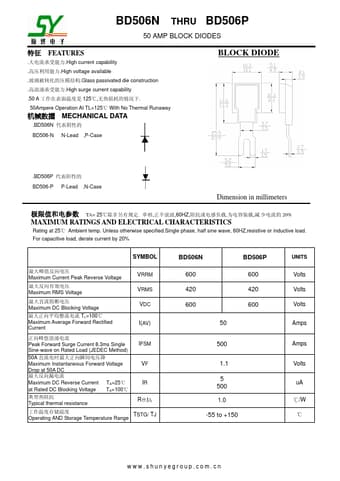

datasheet Preview Page 2

Datasheet Details

Part number
BD506P, BD506N
Manufacturer
Shunye
File Size
194.17 KB
Datasheet
BD506N-Shunye.pdf
Description
50 AMP BLOCK DIODES
Note
This datasheet PDF includes multiple part numbers: BD506P, BD506N.
Please refer to the document for exact specifications by model.
