BD5004 - PRESS-FIT DIODE

Product Overview

Won-Top Electronics

📥 Download Datasheet

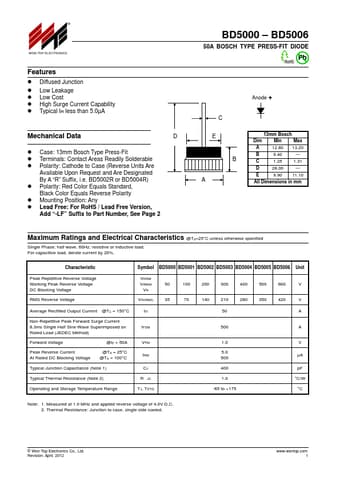

BD5004 PRESS-FIT DIODE by Won-Top Electronics - Datasheet Preview — Datasheet preview – BD5004

Datasheet Details

Part number	BD5004
Manufacturer	Won-Top Electronics
File Size	24.03 KB
Description	PRESS-FIT DIODE
Datasheet	BD5004 Datasheet
Note	This datasheet PDF includes multiple part numbers: BD5004, BD5004_Won. Please refer to the document for exact specifications by model.
Additional preview pages of the BD5004 datasheet.

Product details

Features

Diffused Junction.
Low Leakage.
Low Cost.
High Surge Current Capability.
Typical IR less than 5.0µA Mechanical Data.
Case: 13mm Bosch Type Press-Fit.
Terminals: Contact Areas Readily Solderable.
Polarity: Cathode to Case (Reverse Units Are Available Upon Request and Are Designated By A “R” Suffix, i. e. BD5002R or BD5004R).
Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity.
Mounting Position: Any.
Lead Free: For RoHS.
