BH1414K Datasheet - Rohm

BH1414K - Wireless Audio-Link

BH1414K Multimedia ICs Wireless Audio Link IC BH1414K The BH1414K is a FM stereo transmitter IC that uses a simple configuration.

This IC consists of a stereo modulator for generating stereo composite signals and a FM transmitter for broadcasting a FM signal on the air.

A high S/N ratio and good timbre transmitter circuit can be composed with a few components.

It is available for many applications due to the varieties of setting such as transmission output by serial data input.

!Applications C

BH1414K Features

* 1) It is possible to improve the timbre because it has the pre-emphasis circuit, limiter circuit, and the 19kHz/38kHz low-pass trap filter circuit. 2) Built-in pilot-tone system FM stereo modulator circuit. 3) The transmission frequency is stable because it has a PLL system for the FM transmitter ci

BH1414K_Rohm.pdf

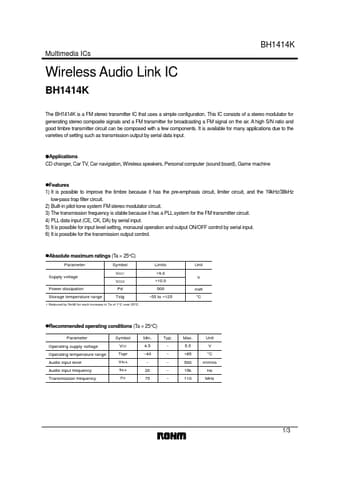

Preview of BH1414K PDF
BH1414K Datasheet Preview Page 2 BH1414K Datasheet Preview Page 3

Datasheet Details

Part number:

BH1414K

Manufacturer:

ROHM ↗

File Size:

50.14 KB

Description:

Wireless audio-link.
