BH101471F, BH101331F Datasheet - Bi technologies

BH101471F - High Profile SIP Thick Film Conformal Coated Resistor Networks

MODEL BH SERIES High Profile SIP www.DataSheet4U.com Thick Film Conformal Coated Resistor Networks ELECTRICAL Standard Resistance Range, Ohms Standard Resistance Tolerance, at 25°C Operating Temperature Range Temperature Coefficient of Resistance Temperature Coefficient of Resistance, Tracking Maximum Operating Voltage Insulation Resistance ENVIRONMENTAL 22 to 1Meg ±2% Optional: ±1% (F Tol.), ±5% (J Tol.) -55°C to +155°C ±100ppm/°C (<100 Ohms = ±250ppm/°C) ±50ppm/°C 150Vdc or √PR ≥10,000 Megohm

BH101331F_Bitechnologies.pdf

This datasheet PDF includes multiple part numbers: BH101471F, BH101331F. Please refer to the document for exact specifications by model.

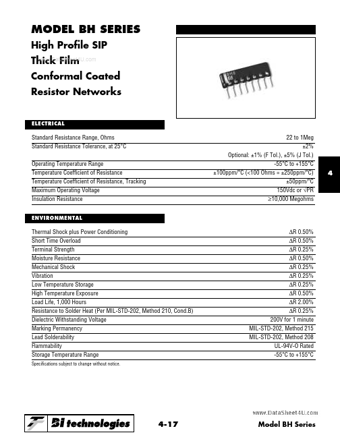

BH101471F Datasheet Preview Page 2 BH101471F Datasheet Preview Page 3

Datasheet Details

Part number:

BH101471F, BH101331F

Manufacturer:

Bi technologies

File Size:

87.63 KB

Description:

High profile sip thick film conformal coated resistor networks.

Note:

This datasheet PDF includes multiple part numbers: BH101471F, BH101331F.
Please refer to the document for exact specifications by model.
